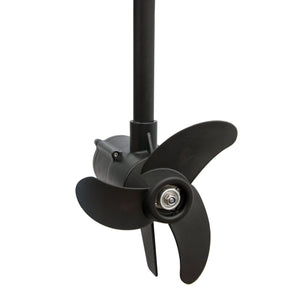

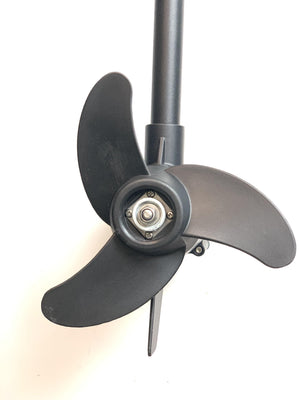

Black Fiberglass Reinforced Nylon Propeller Kit for Seamax PowerMax Models Trolling Motor

Newly re-designed Black fibreglass reinforced composite material propeller, updated pitch, camber and thickness for high thrust application. Better performance with new propeller and minimizes efficiency lost through cavitation.

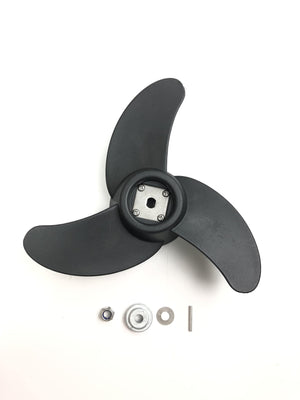

Suitable for Seamax 2019 PowerMax edition trolling motor. Fiberglass Reinforced Black Nylon 3 Blade Propeller. Package included: Stainless steel washer, screw cap, and lock pin; (British system & metric system tighten hardware are both included)

Policy -Ā Please know this prop kit is only suitable for Seamax PowerMax model, if your motor is not this model, we won't provide return service for safety reason if it won't fit your motor.

Ā

NOTE

  • Make sure the lock nut is hand tight enough when first installed
  • Usually, do not recycle to use the lock nut, there are 2 set of lock nuts in the怀motor package, or one set in the additional propeller package.
  • Motor transportation in the vehicle may cause the lock nut to loosen if it is not tight enough. You may need to double-check at least once during the first few times to ensure the locknut is tight.
  • To prevent the lock nut issue to cause the propeller loosed or be damaged. You can purchase a spare propeller when you traveling.



Replacing the Propeller (Refer to User Manual, Page 8).

To replace the propeller, hold the blade and loosen the nut using the propeller wrench (Fig. D). Remove the nut and propeller. If the propeller is stuck, hold one blade by hand and tap on the backside of the other blade with a hard blunt object. If necessary, repeat the procedure for the other blade until the propeller comes off. If the propeller pin is bent, replace it. Align pin (Fig. E) when refitting propeller and tighten nut securely.
