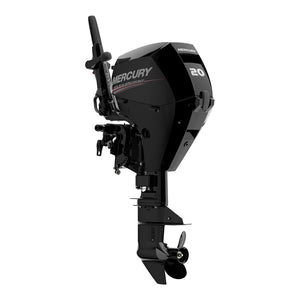

Mercury 4-Stroke 20HP Tiller Handle Outboard Motor - Canada Sale Only
$3,797.00 - $6,424.00
-
Performance
Low weight and awesome torque from the new 20hp and 15hp. Mercury FourStrokes get your boat on plane quicker and provide best-in-class acceleration to complement best-in-class top speed. These outboards are easy to install and operate, and electronic fuel injection ensures reliable starting and instant throttle response in any weather for worry-free boating. The lowest transmitted vibration in its class produces a more comfortable driving experience.
Reliable and durable
Mercury's pre-treatment priming and painting process is engineered specifically for saltwater use, ensuring long-term protection of aluminum castings, and is a vital part of the 20hp and 15hp EFI FourStrokes' exceptional corrosion resistance. Low-copper aluminum alloys shut down corrosion to keep your outboard healthy and powerful; all of Mercury's class-leading aluminum alloys deliver the best protection against corrosion.
Easiest to drive
The innovative tiller handle for the new 20hp and 15hp outboards sets a new standard for portable outboard tiller control, delivering features, functions and craftsmanship never seen before. The new ergonomic and efficient tiller designs enhance your boating experience with revelations in comfort and function, including:
- Horizontal tiller angle adjustment delivers comfort and easy operation by providing ambidextrous control. The tiller handle can be adjusted for right- or left-hand control. Steer with ease no matter where you sit.
- Likewise, reversible throttle grip rotation lets you adjust the direction of the grip rotation for optimal comfort; no matter which arm you’re steering with, you can choose the direction of the throttle grip.
- Driving is made easier with a vertical down stop angle adjustment, which lets you quickly and easily set a vertical operating angle without tools.
- The tiller grip auto throttle return spring automatically brings your throttle to idle when you release the throttle grip. The stop button is located at the end of the grip for quick and easy access.
- There’s also a tiller angle option that lets you lock the tiller at 73 degrees up – great for fishing and for trailering.
- You can adjust the throttle response while underway to suit driving preference. Tightening the throttle response allows you to hold your desired speed.

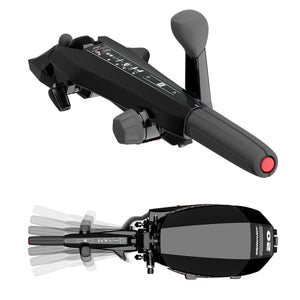

All New Tiller Handle
- Forward shift lever
- Throttle grip mounted stop button Throttle friction to hold trolling speed
- Power Tilt button forward mounted
- 1.5 inches (3.8 centimeters) longer than previous handle
- Tiller vertical angle locks at 73 and 45 degrees for easy access and secure highspeed running
- Tiller is adjustable 18 degrees port and starboard from center, enabling installation on either side of the transom
-
HP / kW 20 / 14.7 Engine type Inline 2 Displacement (CID/CC) 20.3 / 333 Full throttle RPM 5700 - 6200 Fuel induction system Single Overhead Cam Alternator amp / Watt 12/145 electric Recommended fuel 87% octane / up to 10% ethanol Recommended oil 25W-40 Synthetic, 10W-30 4-Stroke Engine protection operator warning Low oil pressure Over-rev Starting Electric Manual Steering Tiller Shaft length 15" / 381 mm 20" / 508 mm Gearcase ratio 2.15:1 Dry weight 99 lbs / 45 kg CARB star rating 3 Bore and stroke 2.40 x 2.24" / 61 x 57 mm Ignition CDI w/electronic spark advance Fuel system Electronic Fuel Injection (EFI) Cooling system Water-cooled with thermostat Gear shift F-N-R Gearcase options Standard Trim system Manual Power Tilt Trim positions 6 Exhaust system Through prop Shallow water drive Yes Shallow water trim range (degrees) 16 Remote fuel tank (optional) Yes Remote fuel tank standard (gal / L) 6.6 / 25 Color Phantom Black
