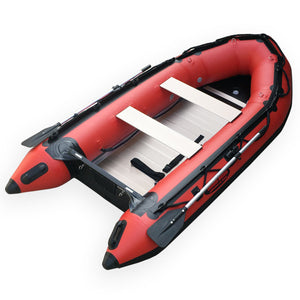

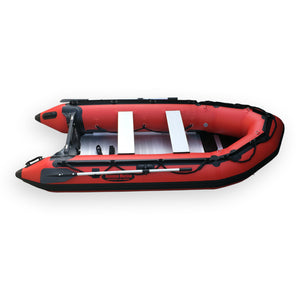

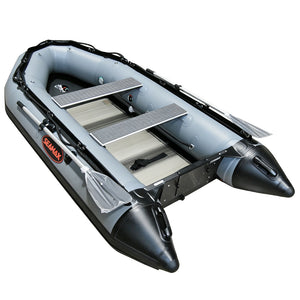

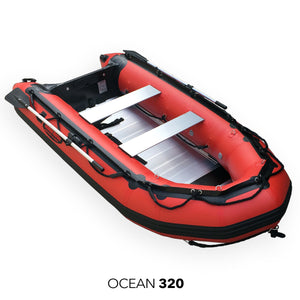

Overall length 10.5ft, beam 5ft, inner dimension L 7.6ft x W 2.2ft, pontoon diameter 16.5 inches; 3 pontoon chambers and 1 keel chamber for V hull; max. pressure 3.6 PSI (25kPa); boat dry weight 110Lbs. max. loading 897Lbs, 4 passenger, boat rated 15HP motor and with 15” Short shaft transom; heavy duty aluminum floor. Available in Red and Dark Gray color. Most Davit system is well supported.
New boat finished with 4 layers and triple overlapped chamber seam, double thermal welded structure with industry best 6 years guarantee.

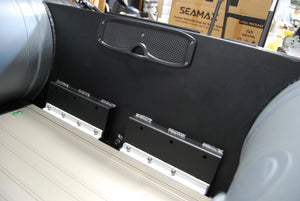

Marine Grade PVC coating fabric for pontoon construction; Thicker 1.2mm material for entire boat bottom, Seamax special reinforcement design for keel, transom underneath and pontoon bottom. Heavy-duty life line around the entire boat, and Secondary life line inside of the boat; Solid 1" thick transom made by top grade marine birch plywood; Heavy-duty bumper around the boat and keel bottom.

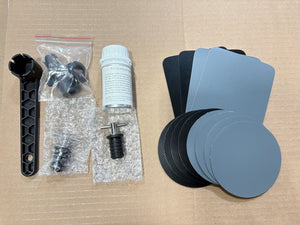

Bench seat(s), 2 x aluminum oars, 2 x , heavy duty boat carrying bags (for hull & floorboard); 2000 lbs capacity front towing cable; foot pump, boat repair kit and spare parts kit. Seamax is a dedicated manufacturer of Seamax inflatable boats, and the Seamax Ocean series are built with the highest construction standards. The Ocean series offer great performance for fishing, hunting and commercial applications. The boat is heavy-duty and worth of the money invested.

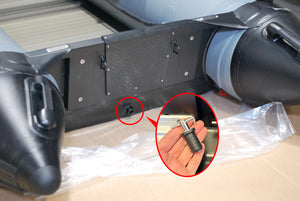

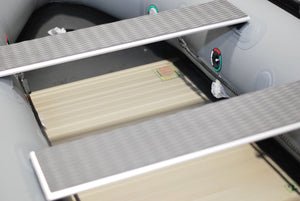

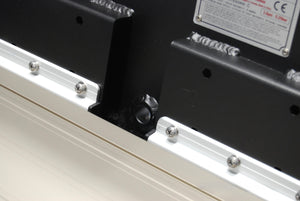

Non-skid sectional aluminum floor system with side joiners; Fuel tank and battery box tie down fitting on the floor; transom motor pad and pull-up style drain valve on the transom; Transom to pontoon adapter fully reinforced, and marine sealant applied to resist leakage; Multiple D-ring kits installed on the inside of the pontoons, 3 x front towing rings, 2 x transom towing rings, 4 x tie-down style handles; Oar lock set installed.
EASY TO GO
Easy to set up, our Heavy-duty inflatable boats are able to take you for a fun day of exploration at the bay, river or lake. Once deflated, it can be easily stored in your mini-van or pickup truck. Inflatable boats take you away from the waters edge and closer to the fish. If you like to spend weekends in the nature with RV or go camping, most likely you will be near the water. An inflatable boat is a good companion with you.
Once deflated and folded, SEAMAX inflatable boat takes up about as much space as a medium bag. You can store it in the trunk of a car, locker, under the stairs or in the corner of the garage, ready for the next weekend or holiday.
The shipment has 2 packages with a total weight about 170Lbs. Hull package dimension is are 45x25x13”, and Floor package dimensions is about 36x25x9”.
Being an inflatable, SEAMAX Boats have a low center of gravity. It is practically impossible to capsize it. Whether stationary or cruising, SEAMAX inflatable boats are always stable. Seamax boat is ideal as a family boat. You can stand up when fishing, children are safe, and mooring is easy and simple.
Seamax boats have exceptional quality workmanship that is unmatched by most other boats. All models are registered with Transport Canada and built in accord with the Small Vessel Manufacturer Standard. Seamax boats are also recognized by US Coast Guard and DMV Office.
About Seamax Air Chamber Seams
When we talking about the latest air chamber seam standard, Hot (Air) Welded and Thermo Bonded are belong to the same type of seam processing. The main chamber seam staying together is not longer using the PVC glue. So the air chamber seam won’t be damaged when time being or daily use, Since the PVC glue life time is 3-10 years based on workmanship and condition of use. Hot welded (or Thermo welded) seam may reduce over 50% of boat major repair service and be able to extend the boat life time to be over 10-15 years.
Seamax has been making our Ocean Series and Ocean T Series inflatable boat with hot welded seam since 2017. And we use the over-lapped major seam structure let the chamber fabric staying together by themselves and not using an additional seam tape. Seamax still use seam tape as add-on with best result. It seems like we give the boat an extra welded seam, and we call it Double Hot Welded.
The PVC boat industry standard is joined chamber seam, I believe it should give a higher chance of air leaking after finished. Usually the same style over-lapped major seam structure can be found from high-end Hypalon boats. Boat using over-lapped seam will use more material to build and many extra hours. At the mean time it requires better skill worker to make it right. Now we can be confident to tell that our chamber seam’s life time will be as the same as the fabric’s life time. In the other word, when the day the boat life time ended, it should not be from the chamber seam issue.
Right now, all our Seamax boats manufacturing are the same. Hot welded seam for PVC boat brings the boat overall quality much closer to Hypalon boat. And Seamax boat with German PVC to build can bring Seamax with a highest standard in the inflatable boat industry.
