Seamax AIR Series is the boat with high pressure Airmat floor. The Airmat floor material is made by the most advanced modern technology with two layers of fabric held together with thousands of polyester cross stitches. When inflated, this type of floor becomes as rigid as a traditional hard floor. The advantage of this type of floor is that it is much lighter, absorbs bumps, resists tears and rolls up with the boat. An extra durable EVA protective layer is pre-installed on all new long lasting Seamax boats' airmat.

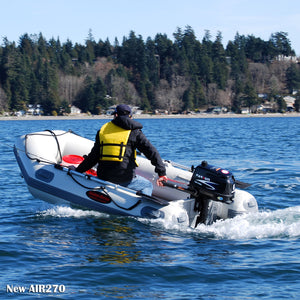

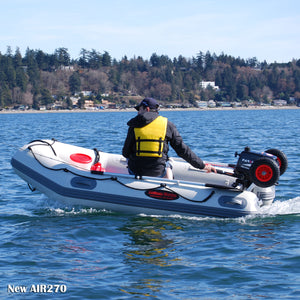

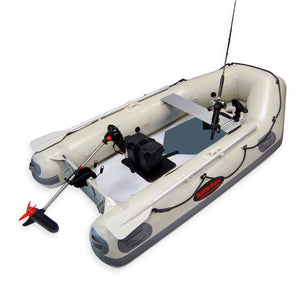

AIR270 Boat Spec: Overall length 9.0 ft, Beam 5.2 ft, Inner dimensions 6.5 x 2.6 ft, Pontoon diameter 16.5 inches, 3 x pontoon chambers, 1 x 3-1/8" thick Airmat chamber and 1 x keel chamber; Boat weight 95 Lbs. Max loading 822 Lbs with 3 Passenger, Boat Rated 10 HP motor and with 15” Short shaft transom. 1 x Plywood Bench Seat. It has enough space on the pontoon to install the dinghy davit patch.

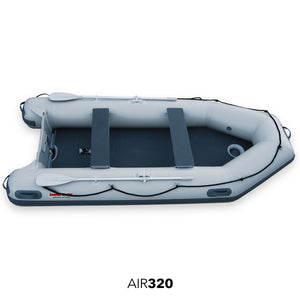

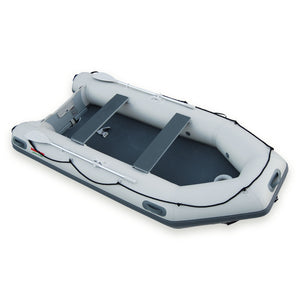

AIR320 Boat Spec: Overall length 10.5 ft, Beam 5.2 ft, Inner dimensions 8 x 2.6 ft, Pontoon diameter 16.5 inches, 3 x pontoon chambers, 1 x 3-1/8" Airmat chamber and 1 keel chamber; Boat weight 115 Lbs. Max loading 1245 Lbs with 4 Passenger, Boat Rated 15 HP motor and with 15” Short shaft transom. 2 x Plywood Bench Seat. It has enough space on the pontoon to install the dinghy davit patch.
Seamax Air Series boat is made with leading Korean PVC, comes with inflatable keel and a V bottom. Additional accessories include Life line, D-Ring, Towing Ring, Towing Cable, Darin Valve, Oar Lock, Fuel Tank Fittings, Handles etc. Package also comes with Bench Seat, Carrying Bag, Aluminum Oars, Foot Pump, Repair Kit, and Spare Parts. The boat has many upgrades, and warranty is up to 5 years.
Airmat Floor Technology
Airmat floor is made up of two layers of fabric held together by thousands of polyester cross-stitches; when inflated to high pressure, this air cushion becomes as rigid as a traditional floor. Airmat floor is much lighter and takes up less space. The soft-to-touch Airmat floor absorbs bumps and resists tears. The max Airmat chamber pressure can support up to 10 PSI. We suggest using Seamax Electric Air Pump.
Inflatable Boat is not hard to assemble. It may take up to 1 hour at the first time. Before pump up the air chambers, please double check all valves and make sure they are at intake position. There is a push /or turn stick at the middle as the switch of the position. You also can use air valve tools to check all the air valves and make sure all screwed down enough.

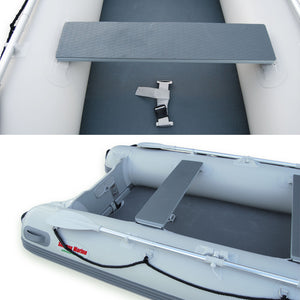

Clear a flat surface that is clean and free of sharp objects. Place the boat in the ground flat surface to start. You can put cardboard underneath or do it at the carpet. The boat has a Plywood Support for Airmat floor at the rear. Please place the support in right position before start. The rear support helps the floor to be flat and getting proper V Hull when boating.
Pump the tube chamber until 40-60% full. Pumping air can help to open up the boat and it will be easier to place the Airmat floor in to the right position, remember the plywood support must be facing down.
You can keep pumping the tube chambers one by one until 80%, double check the Airmat floor position again. Try push the floor in all angle to make sure all good. Then pump the tube chamber until full pressure, then the Airmat chamber, and finally the V-hull chamber.
