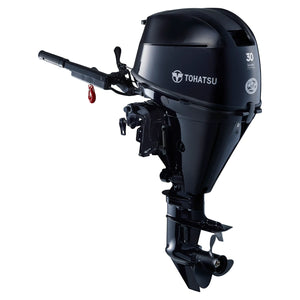

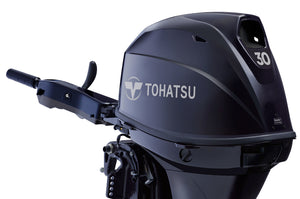

Tohatsu 4-Stroke 30HP Outboard Motor, Tiller Handle, 5 Years Warranty - Boat & Motor Package Deal Only
4,390.00 USD - 5,420.00 USD
-
Model Check List
The MFS30D is designed for a wide variety of boat applications, such as inflatable, aluminum, and fiberglass. Available in a wide variety of options, MFS30D will meet whatever configuration you need for your boat.
We have achieved the lightest weight in its class and improved reliability, without sacrificing performance. Tohatsu strives to deliver a smarter and more exciting boating experience. When you need compact power, the 30hp 4-stroke has exactly what you need.
Propeller Model with the Package - 3R0B645290 (9.9 DIA X 14 PITCH).
NOTE - Our Tohatsu Price online is just for information only, we won't deliver the Tohatsu Motor until you purchase it with a Seamax Inflatable Boat. Package deal discount is Available. Please contact us sales@seamaxmarine.com for best price and inventory. Thank you!
MFS30DEFS
Tohatsu 30HP Outboard with Tiller Handle, Electric & Manual Pull Start, 15” Long Shaft, Package comes with 25L Fuel Tank and Propeller
MFS30DEFL
Tohatsu 30HP Outboard with Tiller Handle, Electric & Manual Pull Start, 20” Long Shaft, Package comes with 25L Fuel Tank and Propeller
MFS30DETS
Tohatsu 30HP Outboard with Multi-function Tiller Handle Kit (Self Installation Required), Power Trim and Electric Start, 15” Short Shaft, Package comes with 25L Fuel Tank and Propeller (Fuel line require customize connection)
MFS30DETL
Tohatsu 30HP Outboard with Multi-function Tiller Handle Kit (Self Installation Required), Power Trim and Electric Start, 20” Long Shaft, Package comes with 25L Fuel Tank and Propeller (Fuel line require customize connection)
-
Descriptions
This Tohatsu motor can only be purchased with the purchase of a Seamax inflatable boat.
Redesigned for 2015, Tohatsu 30hp 4-stroke has it all! Whether you are cruising, fishing or working, the 30 hp EFI (Electronic Fuel Injection) will meet your needs. Tohatsu is the first to offer a battery-less EFI system that provides quick throttle response and very smooth rides on the water.

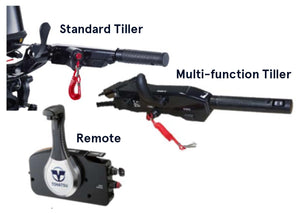

The upper and lower motor cover features a more modern look, and easier access to regular maintenance items. Plus, the multi-function tiller handle comes standard on all 30 hp models with electric start. This tiller includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety.
When you need compact power, the 30hp 4-stroke has exactly what you need.
Tohatsu 4-Stroke Benefits
All new sleek design
Designed with proven technology
Advanced cross-flow induction for smooth operation

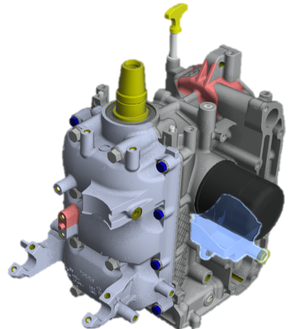

Canister style oil filter for easy replacement
Larger capacity oil reservoir for optimum lubrication
Tuned intake system for crisp takeoffs
Ultra Low emission, EPA and CARB approved
5 Year limited warranty
High Performance and Easy Operation
Lower gear ratio from 1.92:1 to 2.17:1 gives you better low end torque and the ability to turn a higher pitch prop for better top end performance
Electronic Fuel Injection
The boating industry's first battery-free, manual start EFI 4-stroke
Digital CD ignition system for quicker starts
Large alternator and rectifier for superior battery charging
Adjustable steering friction and trim tab for reducing steering effort
Front mounted shift lever for easier operation
Shallow water drive, 6 tilt positions*
Power trim and tilt*
Fundamentals for User Convenience and Reliability
Redesigned upper and lower motor cover for a more modern look and easier access to regular maintenance items
Built in fresh water flush system on lower motor cover for easy access
Through-the-prop exhaust for a quieter ride

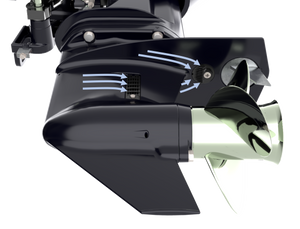

Thermostatically controlled cooling system for consistent engine temperature
Stainless steel water pump housing liner for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
6.6 gallon (25 liter) fuel tank including fuel fittings and fuel line
Aluminum propeller
Protection
Overheat warning (audible)
Low oil pressure warning (audible)
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting
Over-rev. limiter
Package
Price includes fuel line, fuel tank and prop as standard
-
Specifications

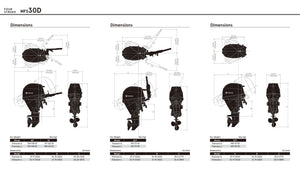

Engine 4 Stroke 3 Cylinder Output 30 hp (22.1 kw) Displacement 500 cc (30.5 cu.in.) Bore x Stroke 61 x 57 mm (2.4 x 2.25 in) Starting Electric or Manual Control Type Remote Control or Tiller Handle Gear Shift Forward - Neutral - Reverse Gear Ratio 2.17:1 (12:26) Propeller Selection Range 8" - 14" Transom Height 15", 20" Fuel Unleaded Gasoline (87 Octane) Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) Oil Capacity 1.8 qt. (1.7L) Fuel Tank 6.6 US Gal. (25 L) Separate Fuel Tank Weight* 128 lbs. (58 kg) Alternator Output Optional: 12V, 210W, 17.5A (Standard on Electric Start Models) Max. RPM Range 5,500 - 6,500 Electronic Fuel Injection Standard Digital CD Ignition System Standard Start In Gear Protection Standard Thermostat Controlled Cooling System Standard Through-The-Prop Exhaust Standard Overheat Buzzer Standard Power Trim and Tilt Option Oil Pressure Warning Standard Variable Idle Speed Standard Shallow Water Drive Option Dimensions
