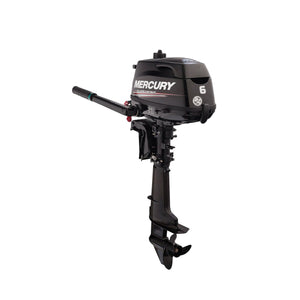

Mercury 4-Stroke 6HP Tiller Handle Outboard Motor

  • Weighing just 38 and 57 pounds, respectively, our 2.5 - 3.5hp and 4 - 6hp FourStroke outboards are easy to lift and carry.

    Multiple trim positions enhance performance and enable shallow-water operation. Automatic decompression bleeds off cylinder pressure to reduce the pulling force required to start the engine.

    Through-prop exhaust on all Mercury 6hp FourStrokes exits underwater for quiet operation.

    Mercury 6hp FourStrokes feature integral fuel tanks with an external fuel-shutoff valve, as well as a fuel-tank cap on top of the cowl. For extended range, these engines also can be connected to a remote fuel tank placed in the boat.
  • HP / kW 6 / 4.4
    Engine type 1 cylinder
    Displacement (CID/CC) 7.5 / 123
    Full throttle RPM 5000-6000
    Fuel induction system 2-valve pushrod (overhead valve)
    Recommended fuel 87% octane / up to 10% ethanol
    Recommended oil Mercury FourStroke Oil 10W-30
    Engine protection operator warning system Low oil pressure
    Over-rev
    Starting Manual
    Steering Tiller
    Shaft length 15" / 381 mm
    20" / 508 mm
    Gearcase ratio 2.15:1
    Dry weight *Lightest model available 57 lbs / 26 kg
    CARB star rating 3
    Bore and stroke 2.32 x 1.77" / 59 x 45 mm
    Ignition CDI w/electronic spark advance
    Fuel system Carbureted
    Cooling system Water-cooled with thermostat
    Gear shift F-N-R
    Gearcase options Standard
    Trim positions 6
    Exhaust system Through prop
    Shallow water drive Yes
    Shallow water trim range (degrees) 16
    Integrated fuel tank (gal / L) 0.3 / 1.1
    Optional fuel tank (gal / L) 3.2 / 12
    Color Phantom Black






Product Type: Four Stroke Motor
